MITECH MR200 Portable / Digital Surface Roughness Tester for Paint / Ink
MR200 high precious surfaces roughness measure instrument
Description:

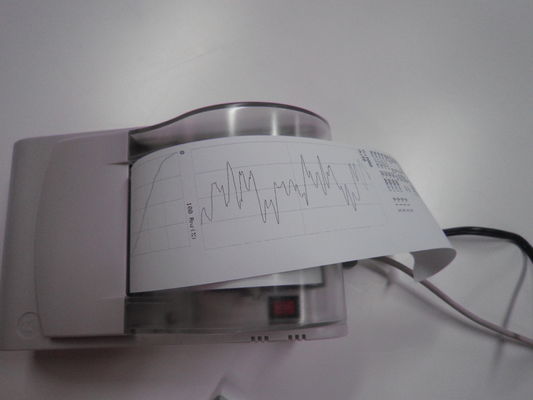

The MR200 surfaces roughness measure instrument is suitable for shop floor use and mobile measure to need of a small handheld instrument, it operation simple, function overall, measure fast, accuracy stability, take convenience.The MR200 is capable of evaluating surface textures with a variety of parameters according to various national standards and international standard.The measurement results are displayed digitall/graphically on the LCD,and output to the printer.
Specifications:
Name |
Content |
|
Measuring range |
Z Axis(Vertical) |
160μm |
X Axis(Horizontal) |
17.5mm |
|
Resolution |
Z Axis(Vertical) |
0.01μm/±20μm |
0.02μm/±40μm |
||
0.04μm/±80μm |
||
Measurement item |
Parameters |
Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS) ,RSk,R3z,Rmax,Rpc,Rmr; |
Standard |
ISO,ANSI,DIN,JIS |
|
Graphic |

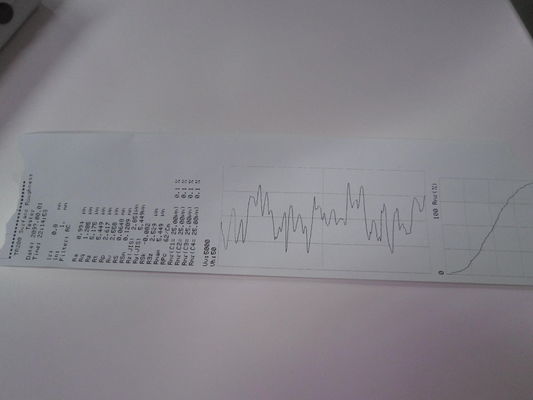

Roughness profile,Material ratio curve,Direct profile |
|
Filter |
RC,PC-RC,Gauss,D-P |
|
Sampling length (lr) |
0.25,0.8,2.5mm |
|
Assessment length ln) |
Ln= lr×n n=1~5 |
|
Pickup |
principle |
Differential inductance |
Stylus |
Natural Diamond, 90B cone angle, 5μm tip radius |
|
Force |
<4mN |
|
Skid |
Ruby,Longitudinal radius 40mm |
|
Traversing speed |
lr=0.25, Vt=0.135mm/s |
|
lr=0.8, Vt=0. 5mm/s |
||
lr=2. 5, Vt=1mm/s |
||
Return Vt=1mm/s |
||
Accuracy |
Less than or equal to ±10% |
|
Repeatability |
Less than or equal to 6% |
|
Power supply |
Built-in Lithium ion battery,AC adapter 8.4V,800mA |
|
L×W×H |
119×47×65mm |
|
Mass |
approximately 380g |
Competitive Advantage:
Selectable Probe
Standard Pickup Small Hole Pickup
Curved Suface Pickup Deep Groove Pickup
Extending Rod

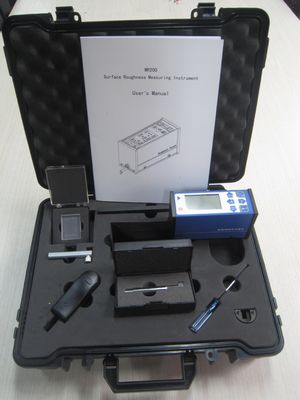

Standard Package:
Name |
Qty |
MR200 main unit |
1 |
Standard pickup |
1 |
Roughness specimen |
1 |
AC adapter |
1 |
